In Situ Thematic Assembly Centre for Marine Service
In Situ TAC
In Situ TAC
role in CMEMS
- One of CMEMS observational data providers along with remote satellites.
- Keystone for assimilation and validation of Marine Forecasting Centres (MFC).
- Interface for national and international observing systems
In Situ TAC
goals
Provide a global picture of the ocean state and variability
⇩
Integrating thousand of local data from on-site sensors on board of a wide range of platforms.
Historical platforms heatmap
In Situ TAC
Platforms
- FB
- CT
- MO
- GL
- PF
- SF
- BO
- BA
- DB
- DC
- RE
- RF
- ML
- TS
- TE
- XB
- SM
In Situ TAC
Scope
In Situ TAC
Players
In Situ TAC
Commitments
- same data format (netCDF - OceanSites 1.2)
- same data flagging convention
- same ftp structure
- same file naming convention
Same data format
For each region, the In Situ Distribution Unit distributes all its data and metadata products in NetCDF files on an FTP server.
The data files format is an implementation of NetCDF OceanSITES format.
flagging convention
NRT quality controls are available here
Quality control flag scale:| Code | Meaning | Comment |
|---|---|---|
| 0 | No QC performed | - |
| 1 | Good data | All real-time QC tests passed |
| 2 | Probably good data | - |
| 3 | Bad data that are potentially correctable | These data are not to be used without scientific correction |
flagging convention
| Code | Meaning | Comment |
|---|---|---|
| 4 | Bad data | Data have failed one or more of the tests |
| 5 | Value changed | Data may be recovered after transmission error |
| 6 | Not used | - |
| 7 | Nominal value | Data were not observed but reported.Example: an instrument target depth |
| 8 | Interpolated value | Missing data may be interpolated from neighbouring data in space or time |
| 9 | Missing value | The value is missing, is not reported, is not applicable |

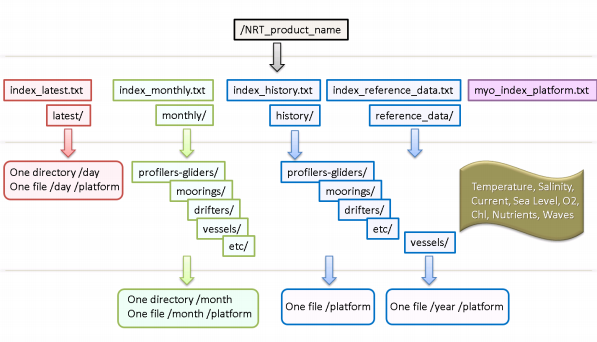

same ftp structure
Each DU distributes all its data and metadata products in NetCDF files on an FTP server sticking with the same structure:
same file naming convention
| History | Monthly | Latest |
|---|---|---|
| RR_XX_YY_CODE<_ZZZ>.nc | RR_YYYYMM_XX_YY_CODE.nc | RR_LATEST_XX_YY_CODE_YYYYMMDD.nc |
| GL_TS_MO_15001_2010daily.nc | IR_200911_TS_DB_44607.nc | IR_LATEST_TS_DB_44607_20091117.nc |
- Common:
- RR: region bigram
- XX: TS (timeseries) or PR (profile)
- YY: data type
- CODE: platform code
- Directory-dependent:
- Timestamp:
YYYYMMDD (latest)& YYYYMM (monthly) - Fixed name: LATEST (latest)
- _ZZZ: optional subsetting code (history)
In Situ TAC
Data products
| NORTH WEST SHELVES | |||||
| ARTIC | |||||
| BALTIC | |||||
| IBERIA-BISCAY-IRELAND | |||||
| BLACK SEA | |||||
| MED | |||||
In Situ TAC
Data access
1. GET GRANTED
user & password2. GET YOUR DATA
- Interactive: CMEMS Web Portal - Example
- Non-interactive - Programmatically:
- Motu Web Server - Requirements & Examples
- Index files - NRT & REP examples
In Situ TAC
Artic & Baltic
Historical platform distribution
- FB
- CT
- MO
- GL
- PF
- SF
- BO
- BA
- DB
- DC
- RE
- RF
- ML
- TS
- TE
- XB
- SM
Last 5 years
Last 5 years
Tomorrow:
Downstream applications...
See you there!
