In Situ TAC is the IN SITU OBSERVATIONAL COMPONENT of The Copernicus Marine Environment Monitoring Service.

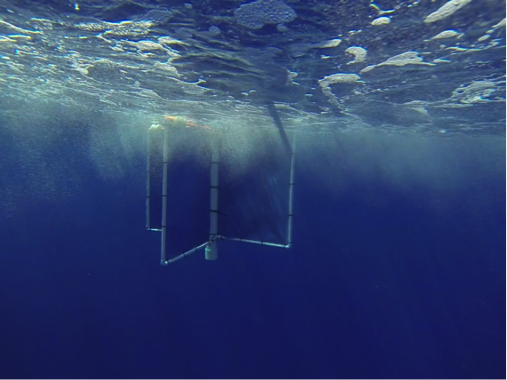

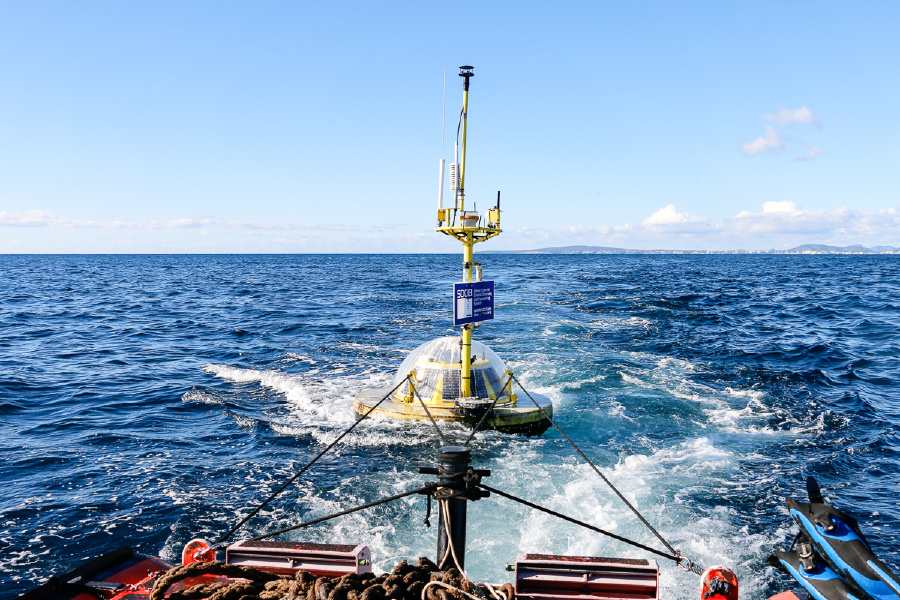

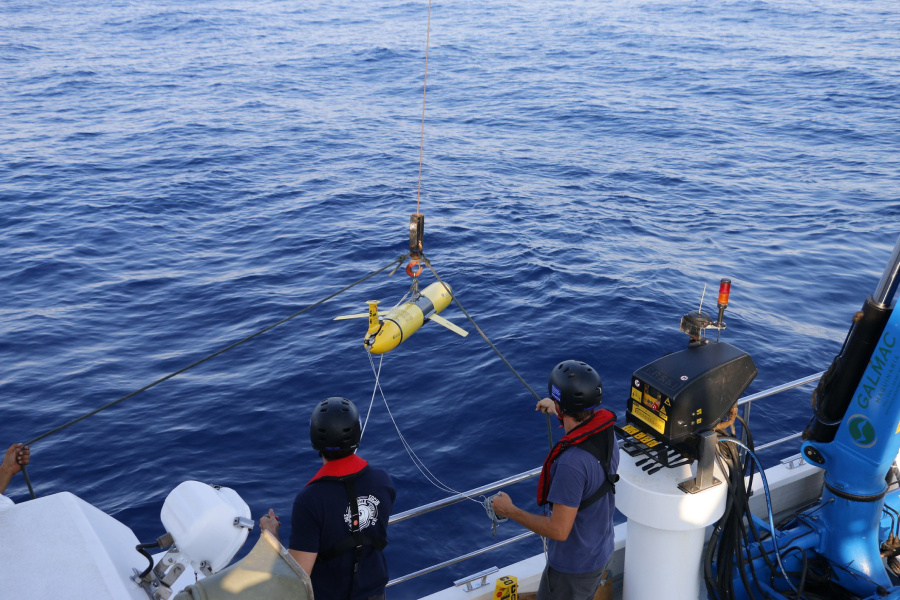

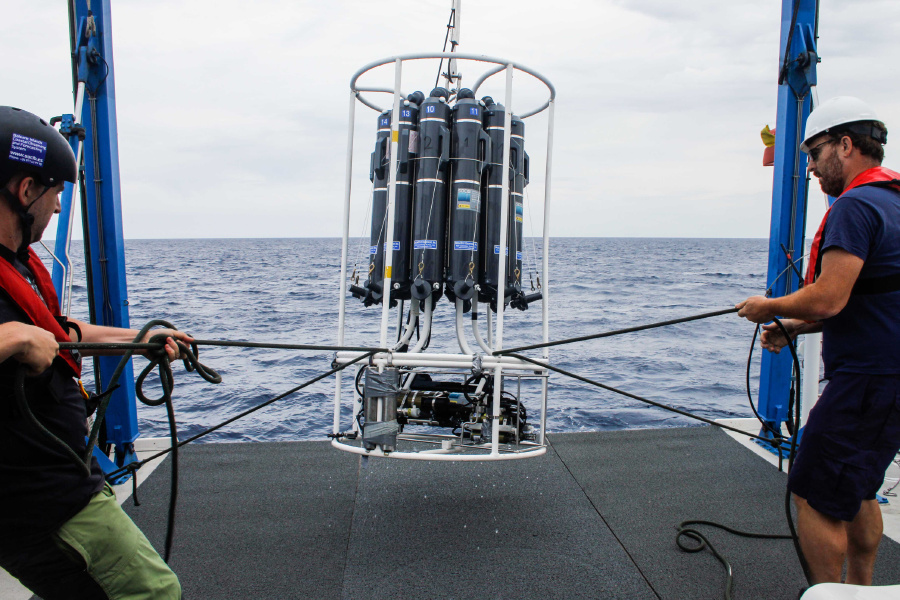

In Situ TAC integrates thousand of local data from on-site sensors on board of a wide range of platforms

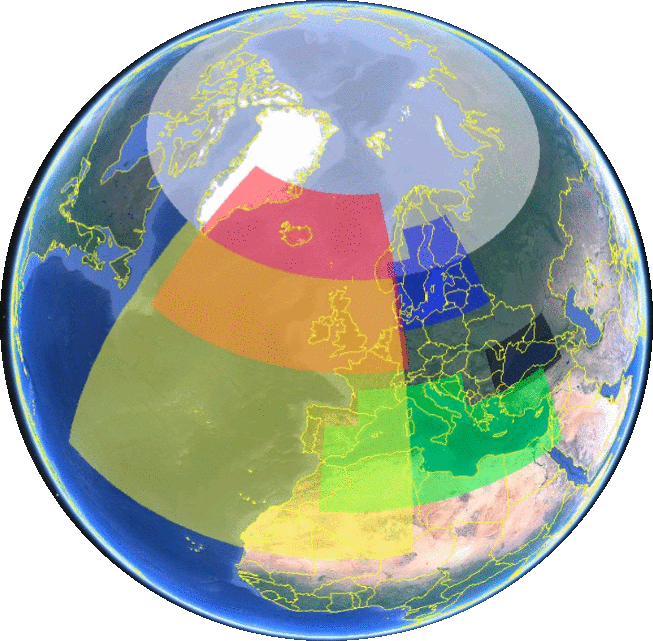

In Situ Production Units (PUs) are responsible for collecting & standarizing data on a defined geographical area.
All the data collected & standarized by every In Situ PU is next centralized & distributed via CMEMS FTP portalImportant! FTPs are secured. First register as CMEMS user to get the access granted.
On that FTP portal all In Situ data-products keep exactly the same:
in order to facilitate selection and processing
The data files format is an implementation of NetCDF OceanSITES format.
CMEMS list a number of tools users can use for visualization & manipulation of such files
Our contribution for spreading the word about how-to-handle netCDF format can be found in:
NRT quality controls are available hereQuality control flag scale:
|0||No QC performed||-|
|1||Good data||All real-time QC tests passed|
|2||Probably good data||-|
|3||Bad data that are potentially correctable||These data are not to be used without scientific correction|
|4||Bad data||Data have failed one or more of the tests|
|5||Value changed||Data may be recovered after transmission error|
|7||Nominal value||Data were not observed but reported.Example: an instrument target depth|
|8||Interpolated value||Missing data may be interpolated from neighbouring data in space or time|
|9||Missing value||The value is missing, is not reported, is not applicable|
In Situ data-product stracture is always the same:
Distribution Units provides 2 types of products :
Collections of data files (netCDFs) continuously updated on the Distribution Units (DUs) - Automate NRTQC
Delayed mode data that has been subject of a throughout Scientific assesment - visual QC.
Build over historical data and delivered by versions, typically once a year.
|NORTH WEST SHELF|
All CMEMS products are available via its Catalogue at: http://marine.copernicus.eu/services-portfolio/access-to-products/
How do you distinguish which "OBSERVATION" is remote (satellite) or In Situ (on-site) ?
All INSTAC products are listed at: http://www.marineinsitu.eu/products/ with shorcuts to the CMEMS Catalogue
Latest NRT data - INSTAC Dashboard at
What else ?
Recap!: Do you remember In Situ Products characteristics?
in order to facilitate selection and processing to final users.

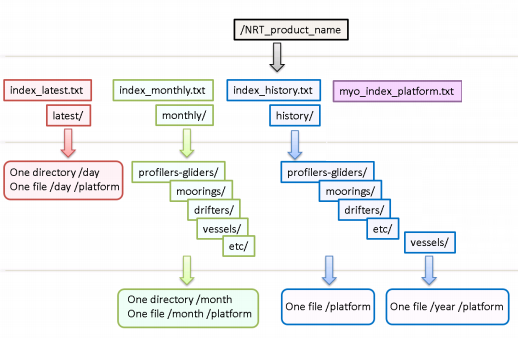

In Situ products FTP structure
Examples... LATEST MED NRT product
Examples... MONTHLY from MED NRT product
Examples... HISTORY from MED NRT product
✔ Jupyter notebooks
Look and feel: https://try.jupyter.org/
